!damage! — 2008-06-08T07:11:41 -05.00

hi.

just wondering do you have the gameboy unit that belongs whit the demovision,

and if you have it, do you have eny pictures of it.

Nintendo Demo Vision

!damage! — 2008-06-07T22:41:02 -05.00

it probably is just for the gameboy now that I think about it

because there's just a small circuit board on the SNES side up front under the controller area, probably the same small board in the NES / SNES display

Nintendo Demo Vision

!damage! — 2008-06-07T22:26:14 -05.00

I've never seen the Demo Vision connected to anything but 1 or 2 GameBoy before, anyone have picts of a NES or SNES setup? Inside that box is actually a NES with MMC5 that transfers graphics from the GameBoy to the TV screen. It is the same box that is inside the GameBoy kiosk, and similar (but not the same) to the GameBoy WideBoy box.

Nintendo Demo Vision

!damage! — 2008-06-07T22:18:07 -05.00

this might be a little more helpful to some:

it says single and dual on the bottom because the demo vision can house dual setups ( 2 gameboys, nes / snes, etc.)

mine is only setup for a single unit (the gameboy), there's another small circuit board on the SNES side that takes care of the audio

Nintendo Demo Vision

!damage! — 2008-06-07T22:14:27 -05.00

Pretty

Nintendo Demo Vision

!damage! — 2008-06-07T22:03:25 -05.00

not sure who here has seen it before, but this is basically the brains behind the SNES / Gameboy kiosk I have:

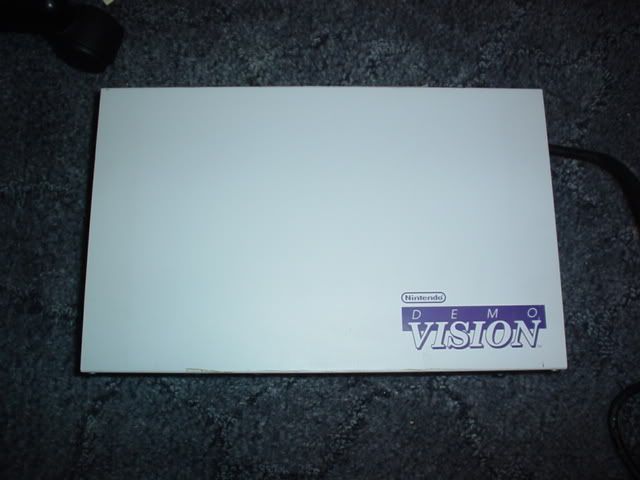

Top Shot:

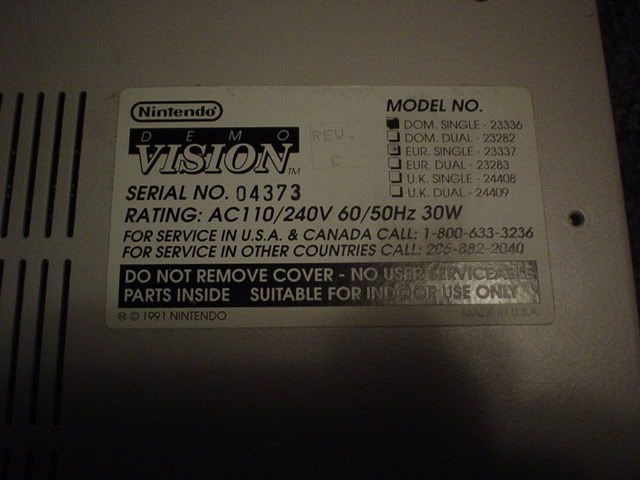

Bottom Shot - (identification label):
