Just wondered if anyone has made this and what board they used. I put it on a skrom board and it works buy am getting horizontal lines through screen. I first wired it like a tkrom board then changed to slrom board, no difference. Board was working and everything is wired and soldered correctly.

FWIW generally the wiring isn't related to the 'board', its just an abstraction to the wiring for the type of EPROM you're likely going to use to replace the original ROMs. Anyway, what kind of chips did you use? Does the rom work properly in a more accurate emulator such as nestopia? A picture of what you're seeing would be nice.

>

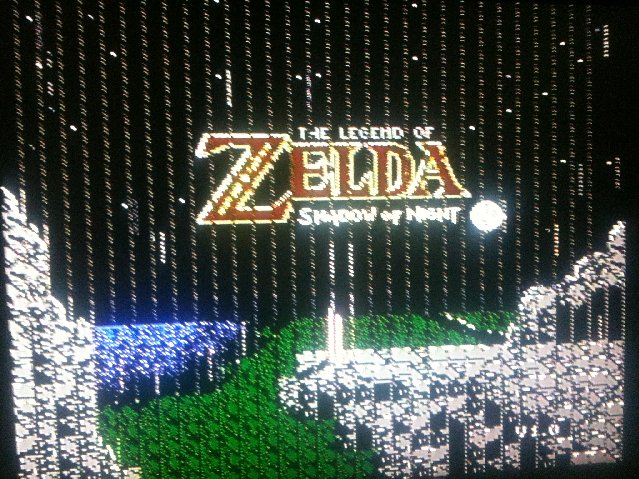

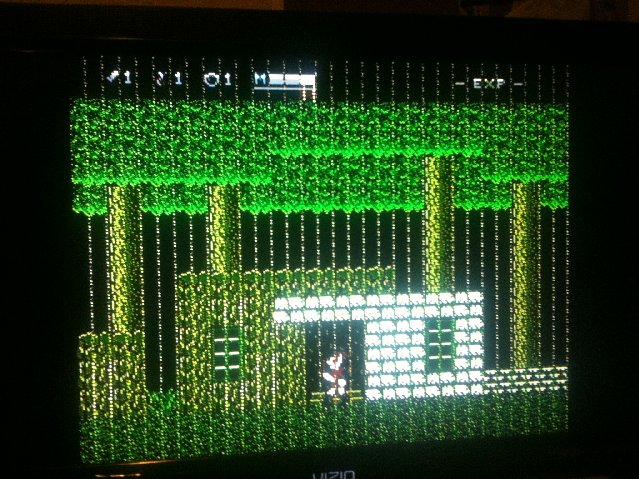

Theres what it looks like, yes it did run fine in nestopia and I used AM27C010 chips

Well, for what its worth I get that occasionally when testing nyan cat carts if the cart connection is slightly askew.

I don't have any 27c010 atm to test myself

i used an skrom board with the tkrom wiring guide and have no issues

put the chips on a new board, you probably just messed it up when desoldering.

Very new to repros and trying to make a copy of this myself. Have a SKROM board (Vegas Dreams), pair of 27C010s, just hoping one of you fellas could confirm I can follow the wiring guide from callan here:

http://callanbrown.com/index.php?...

This was for a TLROM, but I'm guessing it should still work for TK/SK boards?

Thanks very much!
